Kordex Bathroom Hardware Installation Guide

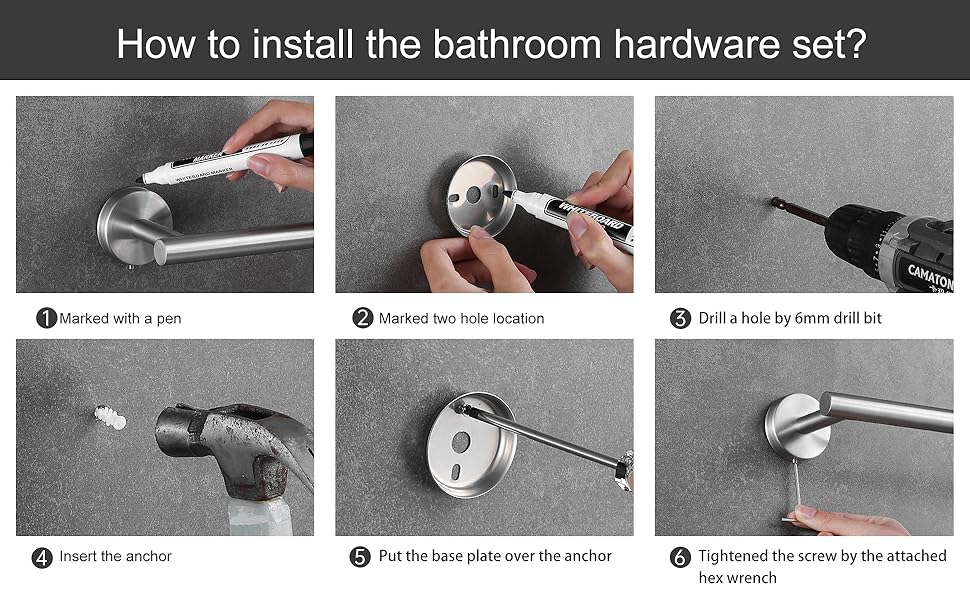

Follow these 6 steps to install your Kordex bathroom hardware kit:

1. Mark with a Pen
Place the hardware at the desired location and mark the mounting holes with a pen.

2. Mark Two Hole Locations
Remove the hardware, check the base, and mark the two mounting holes for alignment.

3. Drill Holes with a 6mm Drill Bit
Use a 6mm drill bit to drill holes at the marked spots, keeping the drill perpendicular.

4. Insert the Anchors
Insert the provided plastic anchors into the drilled holes and tap them in with a hammer.

5. Place the Base Plate Over the Anchors
Align the base plate with the anchors, insert the screws, and ensure it sits flush against the wall.

6. Tighten Screws with the Included Hex Wrench
Use the included hex wrench to tighten the screws until the base is secure.
